(Diagrams Courtesy of Cambs County Council Highways Project Officer)

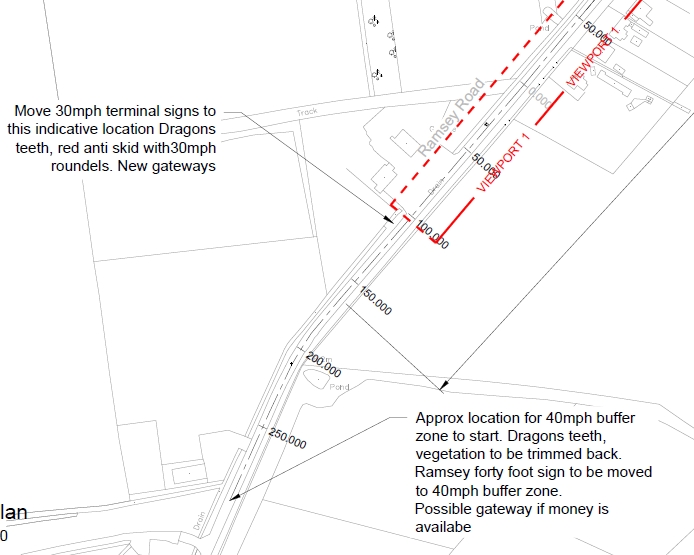

| Location of 40 Buffer and Move
of 30 Limit to South of the Garage Entrance |
 |

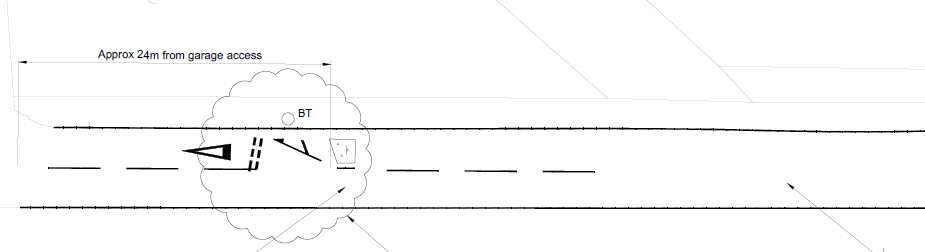

Location of Buildout |
 |

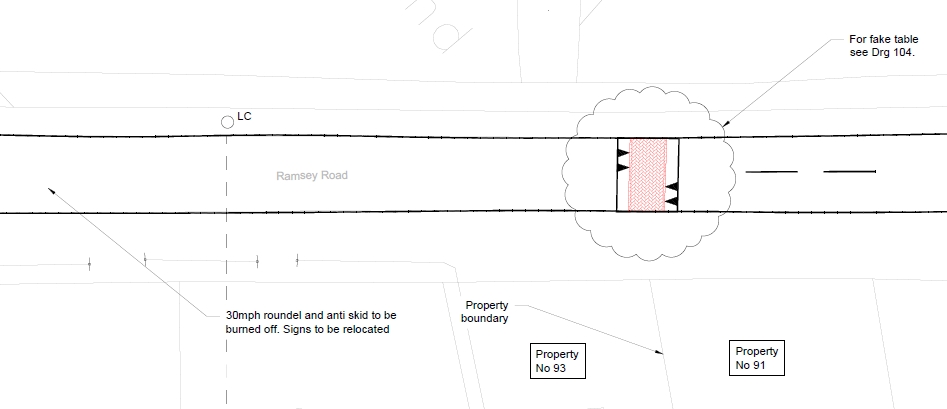

Location of 1st Ghost table |
 |

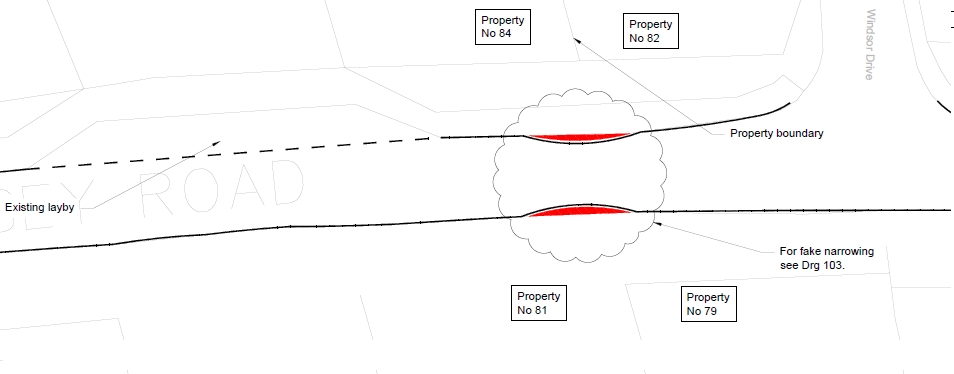

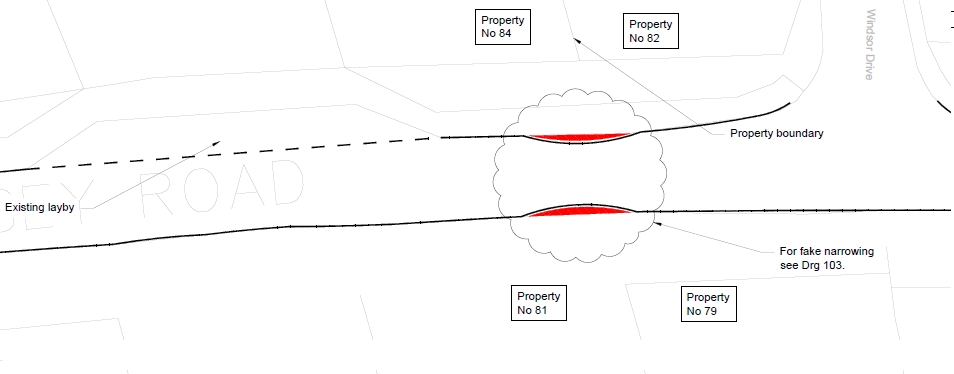

Location of 1st Ghost Buildout |
 |

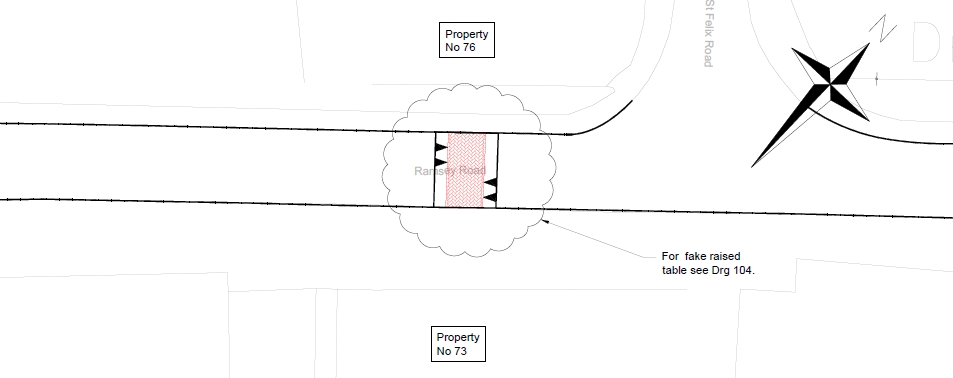

Location of 2nd Ghost Table |
 |

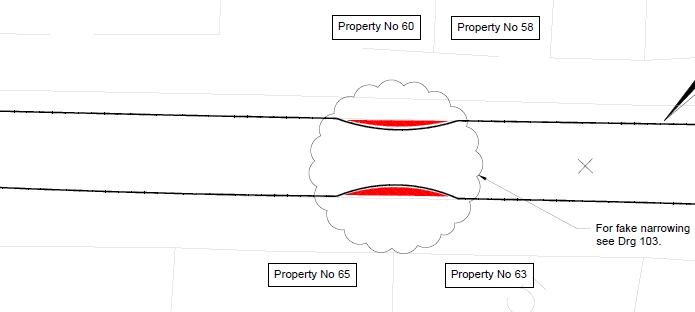

Location of 2nd Ghost Buildout - Just after
the S-Bend |
 |

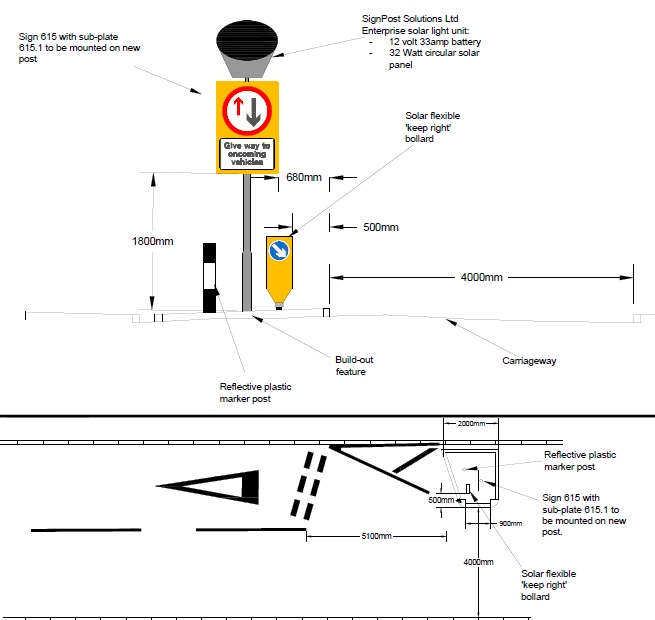

Proposed Buildout (in more detail) |
 |

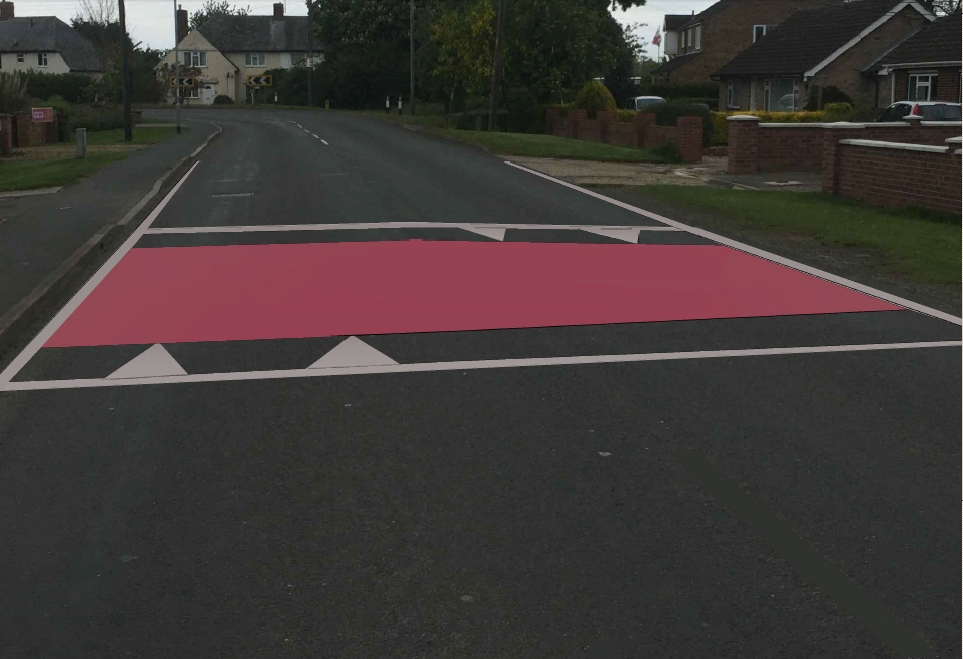

Example of a Ghost Table (Not actual location) |
 |

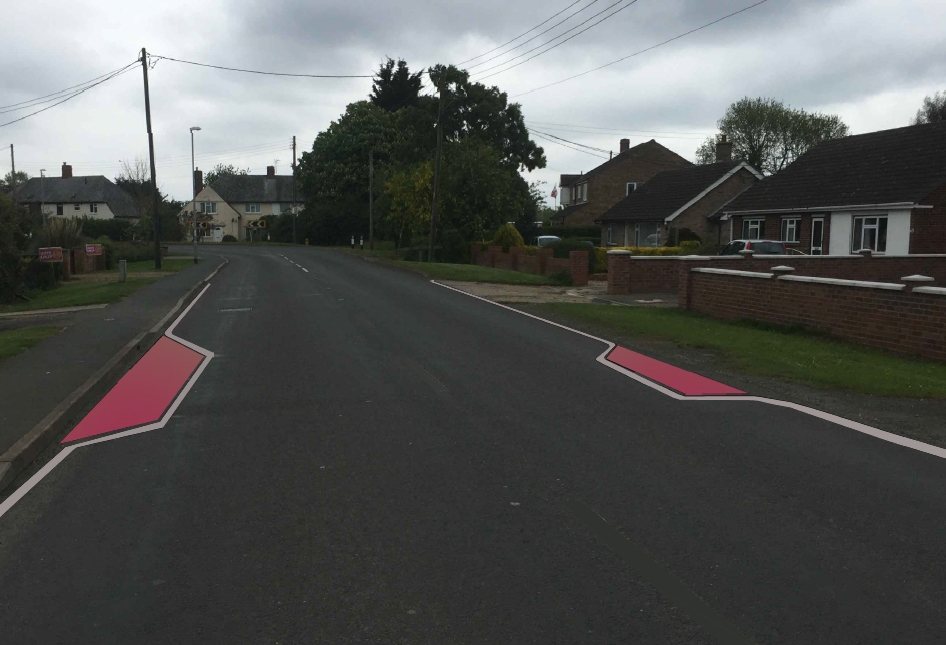

Example of a Ghost Buildout (Actual proposed
location) |
 |
Notice that the road centre line has been removed and continuous white side lines running the full length of the 30 zone substituted to assist traffic to safely navigate the road especially in fog |
